### 1.6.3 Creating Meshes

##### In the last section, we looked at the basic structure of meshes. In this section, we give a brief introduction to different ways of generating mesh geometry.

There are three fundamental ways of creating mesh geometry in Grasshopper:

1. Starting with a mesh primitive
2. Manually constructing a mesh from faces and vertices
3. Converting NURBS geometry into a mesh

#### 1.6.3.1 Primitive

Grasshopper comes with a few simple mesh primitive components: 1. Mesh Box - This primitve requires a Box object as an input which provides the size and location, as well as X,Y, and Z values that determine how many faces to divide the box into. The six sides of a Mesh Box are unwelded allowing for creases. (See the following section for more information about welded meshes)
2. Mesh Plane - This primitive requires a Rectangle input to determine the size and location of the plane, as well as W and H values to determine the number of faces.
3. Mesh Sphere - This primitive requires a base plane to determine the center and orientation of the sphere, a radius for the size, and U and V values to determine the number of faces.
4. Mesh Sphere Ex - Also known as a Quadball, this primitive creates a sphere composed of six patches, which are subdivided according to the C input. A quadball is topologically equivalent to a cube, even though it is geometrically spherical.

#### 1.6.3.2 Construct Mesh As we saw in the previous section, the Construct Mesh component can be used to directly create a mesh from a list of vertices and a list of faces (and an optional list of vertex colors). Constructing an entire mesh manually can be extremely tedious, so this component is more often used with an existing list of faces and vertices which have been extracted using a Deconstruct Mesh component on an existing mesh.

#### 1.6.3.3 NURBS to Mesh

Perhaps the most common method of creating a complex mesh is to generate one based off of NURBS geometry. Individual NURBS surfaces can be converted to a mesh using the Mesh Surface component, which simply subdivides the surface along its UV coordinates and creates quad faces. This component allows you to enter the number of U and V divisions for the resultant mesh.

More complex polysurfaces can be converted to a single mesh with the Mesh Brep component. This component also has an optional Settings input, which can be set by using one of the built in Speed, Quality, or Custom Settings components, or by right-clicking the S input and selecting "Set Mesh Options". For efficient use of meshes, it is often necessary to refine this mesh by using various strategies such as rebuilding, smoothing, or subdividing. Some of these techniques will be discussed later in this Primer. 1. Mesh Surface converts a NURBS surface to a mesh
2. Mesh Brep can convert polysurfaces and more complicated geometry into a single mesh. Adjusting the settings will allow for more or less faces, and a finer or coarser mesh.

NOTE: it is generally much easier to convert from a NURBS geometry to a mesh object rather than the other way around. While the UV coordinates of a NURBS surface are straightforward to convert to quad faces of a mesh, the opposite is not necessarily true, since a mesh might contain a combination of triangles and quads in a way that is not simple to extract a UV coordinate system out of.

#### 1.6.3.4 Exercise

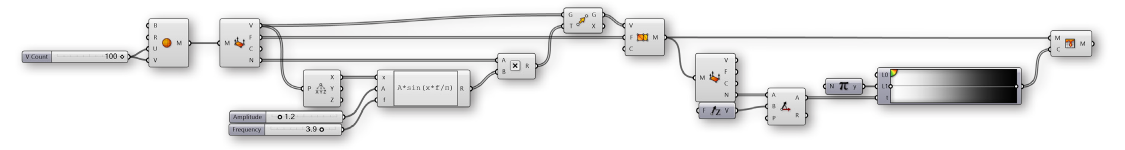

In this exercise, we use a basic Mesh primitive, perform a transformation on the vertices, and then assign a color based on the normal vectors to approximate the rendering process.

01. Start a new definition, type Ctrl-N (in Grasshopper)
02. Mesh/Primitive/Mesh Sphere - Drag and drop a Mesh Sphere component onto the canvas 03. Params/Input/Number Slider - Drag and drop a Number Slider component onto the canvas and set the following values:
Rounding: Integer
Lower Limit:0
Upper Limit: 100
Value: 10
04. Connect the Number Slider to the U Count (U) and V Count (V) inputs of the Mesh Sphere Component Adjust the slider and notice how the resoultion of the sphere changes in the Rhino viewport. Higher numbers result in a smoother sphere, but also produce larger datasets which can require more processing time.

05. Mesh/Analysis/Deconstruct Mesh - Drag and drop a Deconstruct Mesh component onto the canvas 06. Connect the Mesh (M) output of the Mesh Sphere component to the Mesh (M) input of the Deconstruct Mesh component
07. Transform/Euclidean/Move - Drag and drop a Move component onto the canvas 08. Connect the Vertices (V) output of the Deconstruct Mesh component to the Geometry (G) input of the Move component
09. Connect the Normals (N) output of the Deconstruct Mesh component to the Motion (T) input of the Move component
10. Mesh/Analysis/Construct Mesh - Drag and drop a Construct Mesh component onto the canvas 11. Connect the Geometry (G) output of the Move component to the Vertices (V) input of the Construct Mesh component
12. Connect the Faces (F) output of the Deconstruct Mesh component to the Faces (F) of the Construct Mesh component We deconstructed the mesh to get its vertices, faces, and normals. We then simply moved each vertex according to its normal vector. Because we did not change the topology of the sphere at all, we re-used the list of faces to re-construct the new mesh. Normal vectors always have a length of one, so this ended up reconstructing a new mesh sphere with a radius of one more than the original sphere.

Next, we will use a sine function to manipulate the sphere in a slightly more complicated way.

13. Vector/Point/Deconstruct - Drag and drop a Deconstruct component onto the canvas 14. Connect the Vertices (V) output of the Deconstruct Mesh component to the Point (P) input of the Deconstruct component
15. Params/Input/Number Slider - Drag and drop two Number Slider components onto the canvas
16. Set the values of the frist Number Slider to:
Name: Amplitude
Rounding: Float
Lower Limit: 0
Upper Limit: 10
17. Set the values of the second Number Slider to:
Name: Frequency
Rounding: Float
Lower Limit: 0
Upper Limit: 5
18. Maths/Script/Expression - Drag and drop an Expression component onto the canvas 19. Zoom in to the Expression component until you see the options for adding or removing input variables and click on a '+' to add a 'z' variable
20. Right click the 'y' input of the Expression component and change the text to 'A'
21. Right click the 'z' input of the Expression component and change the text to 'f'
22. Double click the Expression component to edit the expression, and enter the following:
A\*sin(x\*f/π)
23. Connect the X output of the Deconstruct component to the 'x' input of the Expression component
24. Connect the Amplitude Number Slider to the A input, and the Frequency Number Slider to the 'f' input of the Expression component
25. Maths/Operators/Multiplication - Drag and drop a Multiplication component onto the canvas 26. Connect the Normals (N) output of the Deconstruct Mesh component to the A input of the Multiplication component
27. Connect the Result (R) output of the Expression component to the the B input of the Multiplication component

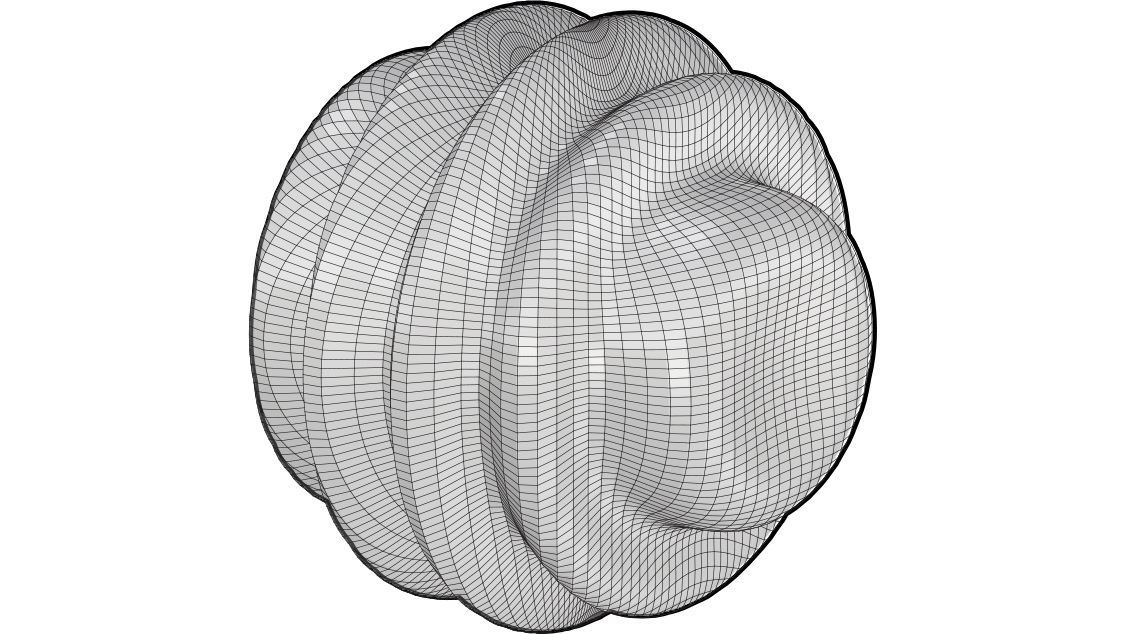

28. Connect the Result (R) output of the Multiplication component to the Motion (T) input of the Move component  Adjust the Amplitude and Frequency number sliders to see how the newly constructed mesh changes.

29. Mesh/Primitive/Mesh Colours - Drag and drop a Mesh Colours component onto the canvas 30. Params/Input/Gradient - Drag and drop a Gradient component onto the canvas

You can right-click the gradient component and select "Presets" to change the color gradient. In this example, we used the Red-Yellow-Blue gradient 31. Connect the Result (R) output of the Expression component to the Parameter (t) input of the Gradient component
32. Connect the output of the Gradient component to the Colours (C) input of the Mesh Colours component
33. Connect the Mesh (M) output of the Construct Mesh component to the Mesh (M) input of the Mesh Colours component

In this step, we could achieve the same result by connecting the gradient directly to the Colours (C) input of the **Construct Mesh** component  We used the Expression results to drive both the movement of the vertices and the color of the mesh, so the color gradient in this case corresponds to the magnitude of the movement of the vertices.

For the final portion of the exercise, we will instead use the direction of the normals relative to a 'light source' vector to simulate the basic process of rendering a mesh.

34. Mesh/Analysis/Deconstruct Mesh - Drag and drop a Deconstruct Mesh component onto the canvas
35. Connect the Mesh (M) output of the Construct Mesh component to the Mesh (M) input of the Deconstruct Mesh component

While the topology of the original mesh has not changed, the normal vectors will be different, so we need to use a new Deconstruct Mesh to find the new normals.</blockquote
36. Vector/Vector/Unit Z - Drag and drop a Unit X component onto the canvas

We will use this as the direction of a light source. You can use other vectors, or reference a line from Rhino to make this more dynamic
37. Vector/Vector/Angle - Drag and drop an Angle component onto the canvas 38. Connect the Normals (N) output of the Deconstruct Mesh component to the A input of the Angle component
39. Connect the output of the Unit Z component to the B input of the Angle component
40. Maths/Util/Pi - Drag and drop a Pi component onto the canvas 41. Connect the Pi component to the Upper Limit (L1) input of the Gradient component
42. Connect the Angle (A) output of the Angle component to the Parameter (t) input of the Gradient component  We used the white-to-black preset for our gradient. This sets the mesh color according to the angle between the normal and the light source, with normals that are directly facing the light source to black and the normals facing away from the source to white (To be a little more accurate, you can reverse the gradient by adjusting the handles). The actual process of rendering a mesh is much more complicated than this, obviously, but this is the basic process of creating light and shadow on a rendered object.
